- Model : CCS-A2; CCS-A5; CCS-A10
- Peristaltic Pumps : RPM range: <200 RPM
- Temperature Sensor : PT100, Accuracy: ± 0.1°C
- Sterilization Methods : Offline Sterilization
- Working Capacity(L) : 2L; 5L; 10L

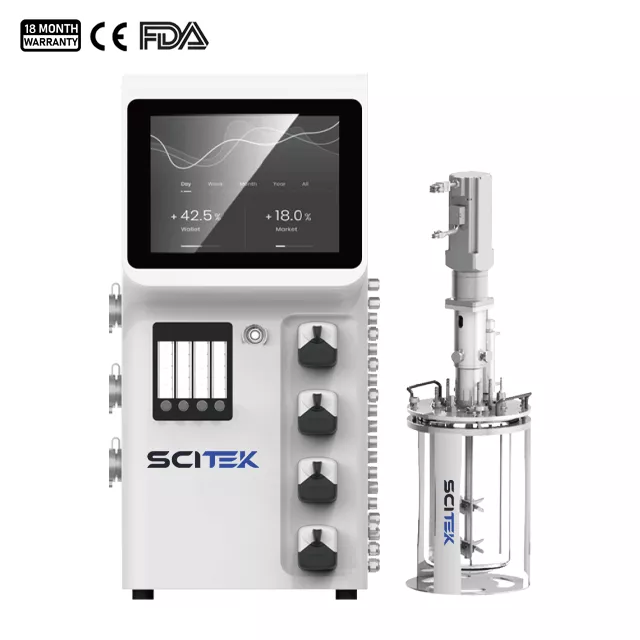

Automatic 3D Cell Culture System
The automatic 3D cell culture system is a scalable, automated, digital, enclosed bioreactor. It features a user-friendly HMI interface and a self-developed PLC main control board for precise control and customization. With accurate parameter control and robust data management, this system is ideal for scientific research, clinical, and industrial applications.
Automatic 3D Cell Culture System Feature:
- Low shear force to ensure homogeneous mixing and high frequency nutrition transfer
- Personalization Multi-level user configuration
- Programs for accurate execution automation and integrated system control
Automatic 3D Cell Culture System Specifications:
| Model | CCS-A2 | CCS-A5 | CCS-A10 | |
| Control Host | Control System | RSSW-PC001V1.0 | ||
| HMI | 15-inch color touch screen, 1024×600 resolution | |||
| Peristaltic Pumps | RPM range: <200 RPM | |||
| Servo Motor | 0.4 KW; 1.27 N·m; 0-150 RPM; Accuracy: 1 RPM | |||
| Gas Mass Flow Meter | 2L: | 5L: | 10L: | |
| O²: 0-40 mL/min; CO²: 0-40 mL/min; | O²: 0-60 mL/min; CO²: 0-60 mL/min; | O²: 0-60 mL/min; CO²: 0-60 mL/min; | ||
| N²: Optional; | N²: Optional; | N²: Optional; | ||
| Air : 0-60 mL/min | Air : 0-100 mL/min | Air : 0-100 mL/min | ||
| Temperature Sensor | PT100, Accuracy: ± 0.1°C | |||
| Dissolved Oxygen (DO) | Scope: 0-212%, Accuracy: ± 1%; | |||
| Special impedance VP interface,shielding interference | ||||
| Pondus Hydrogenii (PH) | Scope: 0-14, Accuracy: ± 0.01; | |||
| Special impedance VP interface, shielding interference | ||||
| Heating Consumption | 200W | |||
| Controller Size (W×D×H)(mm) | 490x400x862 | |||
| Reaction Tank | Materials | Glass: Single-walled high borosilicate glass; | ||
| Stainless Steel: 304 bracket, 316L top cover and pipe fittings | ||||
| Sterilization Methods | Offline Sterilization | |||
| Total Capacity(L) | 3L | 7L | 13L | |
| Working Capacity (L) | 2L | 5L | 10L | |
| Size(DxH)(mm) | 140x256mm | 180x345mm | 230x381mm | |
| Device Connection | Gas | AIR, O2, CO2, N2 | ||
| Power Supply | AC220V, 50/60Hz | |||
| Total Consumption | 1500W | |||
| Shipping Size(W×D×H)(mm) | 980x570x1210 | 980x570x1210 | 980x570x1210 | |
| N.W./G.W. (kg) | 20/27 | 21/27 | 23/27 | |
Advantages of Automatic 3D Cell Culture System:
- Data from the cloud, real-time detection
- Full data recording with an audit trail
- Using many recipes to satisfy various process needs
- Simple interface and easy to use
Application of Automatic 3D Cell Culture System:
- Scientific Research: Enhances experimental accuracy and efficiency.
- Clinical Applications: Supports medical research and treatment developments.
- Industrial Processes: Facilitates large-scale cell production and biomanufacturing.
WHY SCITEK
- 18 Months Limited Warranty
- CE & FDA Standards
- 1-2 Days Handling and 7-30 Days Shipping
