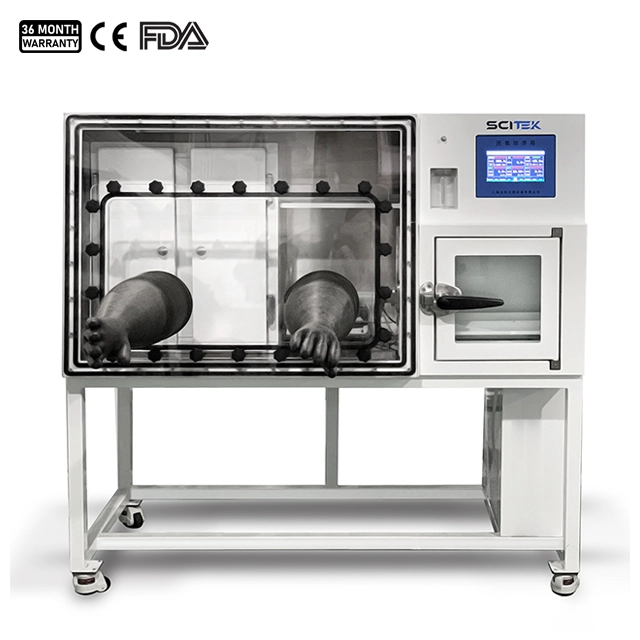

Anaerobic Chamber Feature:

For a direct display of oxygen concentration, use an imported oxygen sensor.
For ease of use, a large touch screen and a highly precise PLC controller are combined with a USB port for data storage.
Impact-resistant transparent window for unobstructed observation.
For simple placement and cleaning of the anaerobic chamber, the front cover is removable.
Featuring a power outlet, light, and UV lamp for sterilizing.
Effective palladium catalyst for consistent oxygen levels.
Complete automatic gas replenishment that protects against both positive and negative pressure.
Use an oil-free vacuum pump and automate pressure maintenance and vacuum pumping.
An innovative pressure-relieving oil bottle design ensures safety.
The greatest anaerobic chamber has a feature that prevents leaks.

Anaerobic Chamber Specification:

Model	ICB-3ANI
Temperature Range	RT+3~60℃
Temperature Stability	＜±3℃
Temperature Uniformity	＜±0.3℃
Anaerobic Level	Operation room＜5ppm
Time for Creating Anaerobic State in Sample Chamber	＜10 minutes
Anaerobic Status Creating	Vacuum+air replacement (N2+mixed gas)
Time for Creating Anaerobic State in Operation Chamber	＜70 minutes
Anaerobic Environment Maintenance Time	＞13 hrs. (when no supply of mixed gas)
Air Replacement	Automatic
Internal Chamber Size (W×D×H)(mm)	420×300×500
Sample Room Size (W×D×H)(mm)	400×330×320
Sampling Room Channel Ruler (W×H)(mm)	275×295
Operation Chamber Size (W×D×H)(mm)	950×680×750
External Size (W×D×H)(mm)	140×730×1370
Shipping Size (W×D×H)(mm)	1510x910x1610
N.W./G.W. (kg)	255/315
