Anaerobic Chamber

Use the versatile ICB-2A anaerobic chamber as a controlled atmosphere or anaerobic chamber in your lab.

  • Model : ICB-2A
  • Temperature Stability : <±0.3℃
  • CO2 Range : 0~20%
  • Shell Material : Full 304 stainless steel
  • External Size (W×D×H)(mm) : 1450x740x1420

Share the product

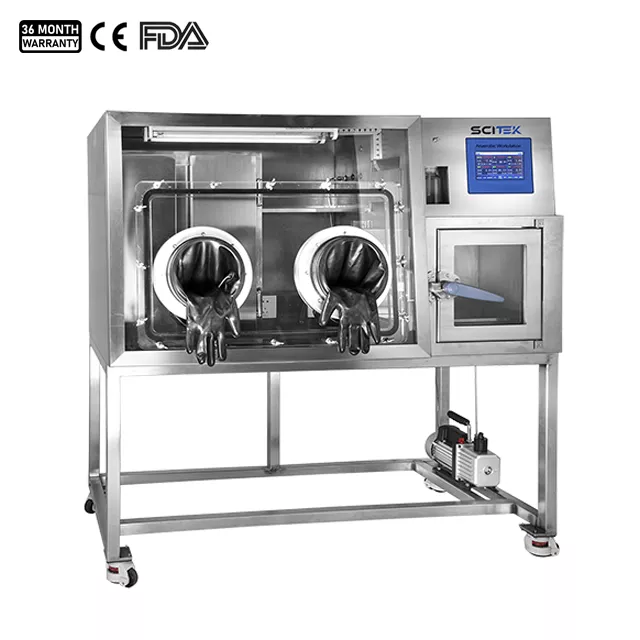

This all-stainless steel 304 anaerobic chamber is a high-performance laboratory equipment designed for precision research in an oxygen-free environment. It provides a reliable anaerobic operating environment, protecting experimental samples from oxygen. Its intelligent design and robust construction make it ideal for laboratory research.

Anaerobic Chamber Feature:

  1. This workstation acts as a full-featured anaerobic incubator by combining CO2, humidity control, and constant temperature.
  2. It can function as a micro-oxygen chamber or anaerobic chamber, allowing the oxygen concentration to be adjusted between 0% and 10%.
  3. The humidity management system that operates entirely automatically makes sure that Petri dishes don’t dry out.
  4. With the ability to transfer 40 pieces of 90mm plates at once, sample transfer is made simple. There’s also the option of a single dish transfer device.
    An automated sleeve gassing system with a foot switch is one of the workstation’s features for effective nitrogen gas and vacuum filling. It has a typical external vacuum pump installed.
  5. The oxygen concentration is kept below 0.1% without the need for regular activation thanks to the application of a high-efficiency palladium catalyst.

Anaerobic Chamber Specifications:

Model ICB-2A
Time for Creating Anaerobic State in Sample Chamber <5 minutes
Time for Creating Anaerobic State in Operation Chamber <1hr
Anaerobic Environment Maintenance Time >12hrs(when no supply of mixed gas)
Temperature Range RT+3~60℃
Temperature Stability <±0.3℃
Temperature Uniformity <±1℃
CO2 Range 0~20%
CO2 Control Accuracy ±0.1% (imported sensor)
Humidity Control Range 50~90%RH
Humidity Fluctuation ±3%RH
Power Rating 1500W
Shell Material Full 304 stainless steel
Power Supply AC 220V, 50Hz (can customized)
Internal Chamber Size (W×D×H)(mm) 420x290x475
Operation Chamber Size (W×D×H)(mm) 950x670x750
Sampling Chamber Size (W×D×H)(mm) 400x300x320
External Size (W×D×H)(mm) 1450x740x1420
Shipping Size (W×D×H)(mm) 1510x920x1520
N.W./G.W. (kg) 260/310

Advantages of Anaerobic Chamber:

  1. UV lamp sterilisation
  2. Fully automated gas displacement pathway that provides both positive and negative pressure protection and prevents gas leakage.
  3. The workstation provides precise control of CO2, humidity and temperature.
  4. Over-temperature protection for added safety.
  5. Easy to clean
  6. Standard electrical outlets are included for added convenience.
  7. Latex gloves are included for comfortable and flexible operation.

Applications of Anaerobic Chamber:

  1. Microbiology research: for anaerobic bacteria culture and research.
  2. Biochemistry experiments: for biochemical reactions that require an anaerobic environment.
  3. Drug discovery: to test the effects of new drugs under anaerobic conditions.
  4. Environmental science: to study ecosystems and environmental samples under anaerobic conditions.

Anaerobic Chamber Packing:

The anaerobic chamber is packaged in sturdy wooden crates with foam liners to ensure safety during transport. Fragile and anti-tilt markings are affixed to the outside of each package to remind transporters to handle with care. Co-operate with reputable logistics companies to provide safe and timely delivery service. Anaerobic chamber is also equipped with a full tracking system to ensure that the equipment reaches customers in good condition.

WHY SCITEK

  1. 36 Months Limited Warranty
  2. CE & FDA Standards
  3. 1-2 Days Handling and 7-30 Days Shipping

FAQ

Is there oxygen in an anaerobic chamber?

Anaerobic chambers are designed to provide an anaerobic environment to promote the growth of anaerobic microorganisms. Anaerobic tanks are usually purged with an inert gas (e.g. nitrogen) to remove most of the oxygen.
