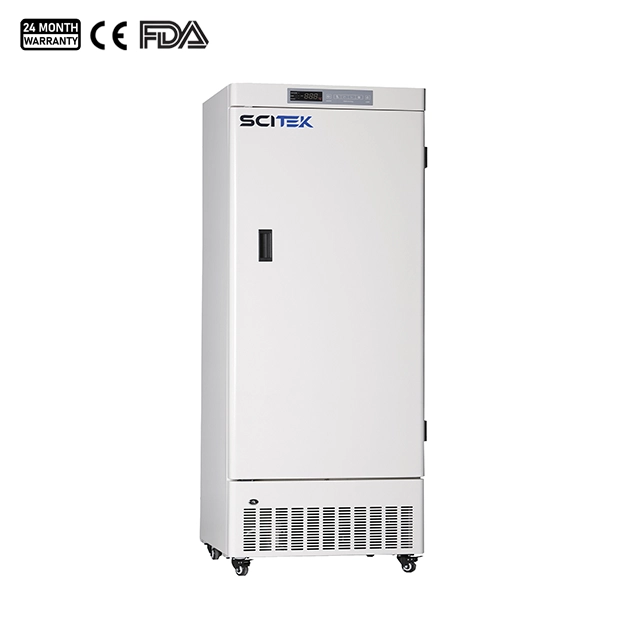

This -40℃ freezer offer energy and space savings and are ideal for storage applications.
The -40℃ freezer is one of the key indispensable pieces of equipment for the modern laboratory, providing a safe and reliable environment for storing your samples. Whether it’s biological samples, chemical reagents or pharmaceutical samples, this ultra-low temperature refrigerator ensures their long-term preservation and stability at extremely low temperatures.
| Model | FZ-40V270E | FZ-40V280E | FZ-40V330E | FZ-40V360 | RFZ-40V370 | FZ-40V530 | FZ-40V1000 | |
| Capacity (L) | 268 | 278 | 328 | 358 | 368 | 528 | 936 | |
| Size (WxDxH)(mm) | Internal | 508x455x1137 | 480x415x1460 | 508x455x1393 | 466x636x625 | F:580x626x625 R:466x636x625 | (651×631.5×635)x2 | 1000x700x1335 |
| External | 673x676x1630 | 659x600x1694 | 673x676x1886 | 720x830x1870 | 720x830x1870 | 900x818x1875 | 1304x1000x2017 | |
| Temperature Range (℃) at RT. 10~32℃ | -20~-40 | -20~-40 | -20~-40 | -20~-40 | F: -20～-40 R: 2～8 |
-20~-40 | -25~-40 | |
| Sensor | NTC | NTC | NTC | NTC | NTC | NTC | PTC | |
| Controller | Microprocessor | |||||||
| Cooling Stystem | Refrigerant | R290 (CFC Free) | ||||||
| Defrost | Manual | |||||||
| Compressor (Qty) | CUBIGEL/1 | CUBIGEL/1 | CUBIGEL/1 | CUBIGEL/2 | CUBIGEL/1 HUAYI/1 | CUBIGEL/1 | SECOP/2 | |
| Display | Digital display | |||||||
| Audible & Visible Alarm | Standard | High/Low temperature, Sensor error | ||||||
| High Ambient Temperature | / | / | / | Standard | Standard | Standard | Standard | |
| Low Battery | / | / | / | / | / | / | Standard | |
| Power Failure Backup System (alarm) | 8h | / | 8h | 8h | 8h | 8h | 72h | |
| Material | Internal | Electro-galvanized steel with antimicrobial powder coating | Stainless steel grade 304 | |||||
| External | Electro-galvanized steel with antimicrobial powder coating | |||||||
| Accessories | USB Port | / | / | / | Standard | Standard | Standard | Standard |
| Casters | Standard | Standard | Standard | Standard | Standard | Standard | / | |
| Remote Alarm Port | Standard | / | Standard | Optional | Optional | Standard | Standard | |
| Test Hole (Qty / Diameter (mm) | 2/20 | |||||||
| Shelves / Drawers (Qty) | Shelves/3 | Drawers/7 | Shelves/4 | Shelves/4 Drawers/12 | Shelves/2 Drawers/6 | Shelves/4 Drawers/18 | Shelves/3 | |
| Sound Emission (dB) | 48 | 50 | 48 | 49 | 50 | 55 | 50 | |
| Electricity | Voltage/Frequency | AC110/220V±10%, 50/60Hz | ||||||
| Consumption (W) | 300 | 280 | 300 | 310 | 430 | 340 | 1000 | |
| N.W./G.W. (Kg) | 98.5/118 | 79/104.5 | 110.3/132 | 138/178 | 137/166 | 151/184 | 372/416 | |
| Shipping Size (WxDxH) (mm) | 760x760x1750 | 725x665x1850 | 750x760x2030 | 780x920x1990 | 775x920x1990 | 930x970x2000 | 1360x1135x2170 | |
With a clear LED display on the front and an easy-to-operate control panel, users can easily set and monitor the temperature and other parameters of the refrigerator.
We have designed multi-tier shelves to provide you with flexible storage space for your samples. The interior is made of high quality insulating materials to ensure temperature stability in the freezer. In addition, the refrigerator is equipped with an interior light for you to view and manipulate your samples in low-light conditions.
Multi-tier shelves with removable design for easy organisation and management of samples
Durable handles and door locks for secure sample storage
